Replacement parts for CCI control valves is the first area where we can help. When your vales need a spare part, use the ones you know will work-parts from the original manufacturer. We have a corresponding part to fit your needs. Made from the right materials, to the right dimensional specification, by qualified machinists. And all our spares meet the original industry standards for which valves were designed: API,ANSI or ASME.

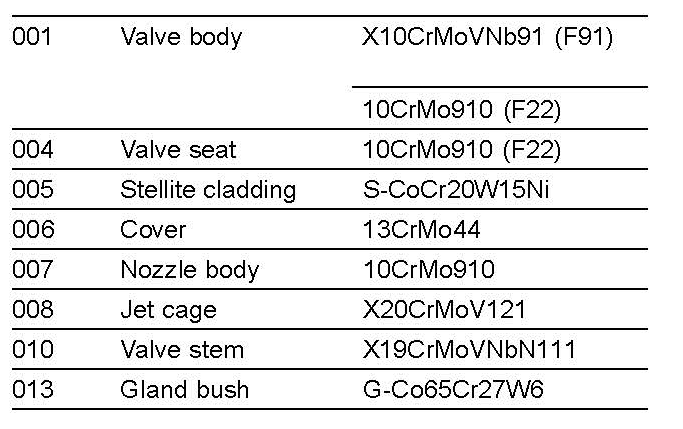

Model No. ARS assembly drawing
Valve soft-goods: item 034,035,036.
Valve plug assembly: item 011.
Valve seat: item 001.3.
Jet cage: item 008.

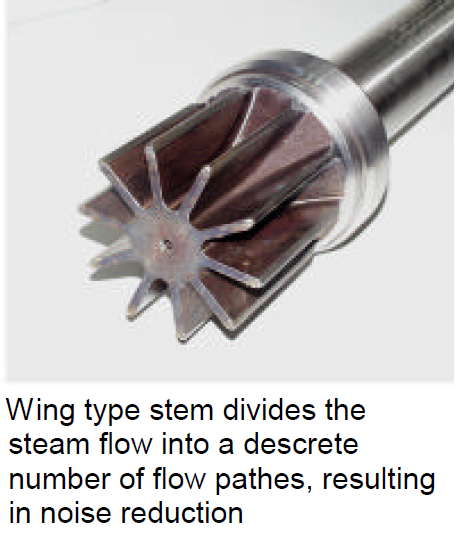

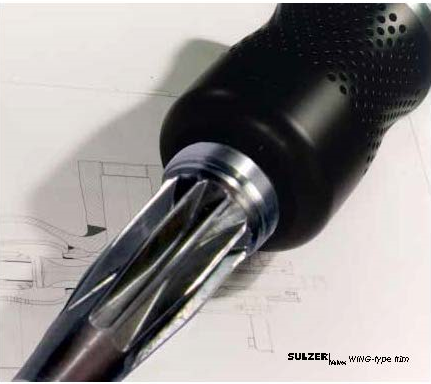

Sulzer developed the unique WING-type stem with contoured cage design for use high pressure bypass systems. Unlike conventional plug designs, the WING-type stem has a specially contoured profile to produce wave interference. This design incorporates specially engineered channels that divide the steam flow into discrete paths and increase generated noise frequency. This higher frequency noise is more easily absorbed by the adjacent piping and results in noise-level reduction of more than 10dBA as compared to conventional designs.
Model No. ARS assembly drawing
Valve plug assembly: item 011.
Valve seat: item 001.3.
Jet cage: item 008.
Sulzer developed the unique WING-type stem with contoured cage design for use high pressure bypass systems. Unlike conventional plug designs, the WING-type stem has a specially contoured profile to produce wave interference. This design incorporates specially engineered channels that divide the steam flow into discrete paths and increase generated noise frequency. This higher frequency noise is more easily absorbed by the adjacent piping and results in noise-level reduction of more than 10dBA as compared to conventional designs.
